Wind Analysis: Staples Municipal

Station Data

Click below for wind rose diagrams, modal direction data, and snow transport data for Staples Municipal.

Expand all

Wind Roses, Frequency Distribution (%)

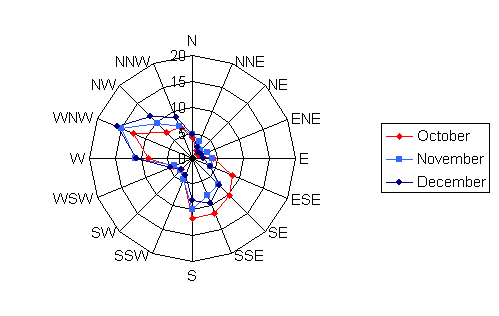

Wind rose diagram depicting the wind speed and direction for Staples Municipal for the months of October, November, and December
Wind rose diagram depicting the wind speed and direction for Staples Municipal for the months of January, February, and March

Modal Direction

See the degree vs. cardinal direction table

OctNovDecJanFebMarOct-Mar
290290290290290300290

Snow Transport

Potential Snow Transport (Qupot) over Snow Accumulation Season [kg/m] by Wind Speed Class [kts]

View Qupot formula

Direction11-1617-2223-2728-33>34Total
N651405   1,056
NNE15934   192
NE42    42
ENE100    100
E83    83
ESE16734   201
SE59334   626
SSE1,511338   1,848
S1,360641   2,002
SSW29268   360
SW100203   303
WSW351135   486
W1,552979   2,531
WNW2,8712,194161185 5,410
NW2,6713,004161185 6,020
NNW1,594844   2,438
Total     23,697
