Station Data
Click below for wind rose diagrams, modal direction data, and snow transport data for Austin Municipal.

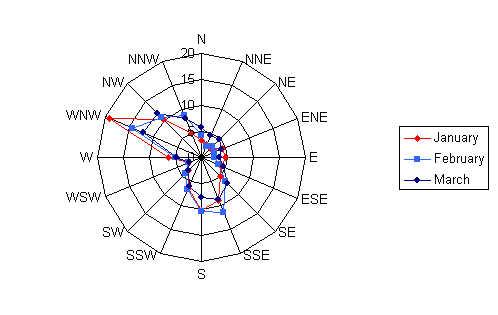

Wind Roses, Frequency Distribution (%)
Modal Direction
See the degree vs. cardinal direction table
| Oct | Nov | Dec | Jan | Feb | Mar | Oct-Mar |
|---|---|---|---|---|---|---|
| 170 | 300 | 300 | 300 | 300 | 310 | 300 |
Snow Transport
Potential Snow Transport (Qupot) over Snow Accumulation Season [kg/m] by Wind Speed Class [kts]
| Direction | 11-16 | 17-22 | 23-27 | 28-33 | >34 | Total |
|---|---|---|---|---|---|---|
| N | 419 | 178 | 598 | |||
| NNE | 250 | 89 | 339 | |||
| NE | 397 | 30 | 427 | |||
| ENE | 603 | 297 | 900 | |||
| E | 537 | 357 | 894 | |||
| ESE | 743 | 446 | 71 | 1,260 | ||
| SE | 985 | 625 | 71 | 1,681 | ||
| SSE | 1,257 | 357 | 1,614 | |||
| S | 1,625 | 535 | 2,160 | |||
| SSW | 897 | 506 | 1,403 | |||
| SW | 404 | 1,041 | 1,445 | |||
| WSW | 257 | 89 | 347 | |||
| W | 1,096 | 773 | 71 | 1,940 | ||
| WNW | 4,243 | 5,532 | 212 | 326 | 10,313 | |
| NW | 2,875 | 2,647 | 5,522 | |||
| NNW | 1,434 | 1,160 | 2,594 | |||
| Total | 33,435 |
